IoTSmart Landslide Detection System Smart Disaster & Safety Management Solutions

Smart Landslide Safety Monitoring That
Detects Disasters in Advance

The IoT-based Landslide Detection System monitors soil moisture, ground displacement, and rainfall in real time to detect early signs of landslides. Using LoRa communication, it sends alerts to an integrated control center for rapid response and on-site safety.

DT’s adaptable IoT disaster management platform supports various natural hazards—such as slopes and embankments—minimizing human and property damage through timely action.

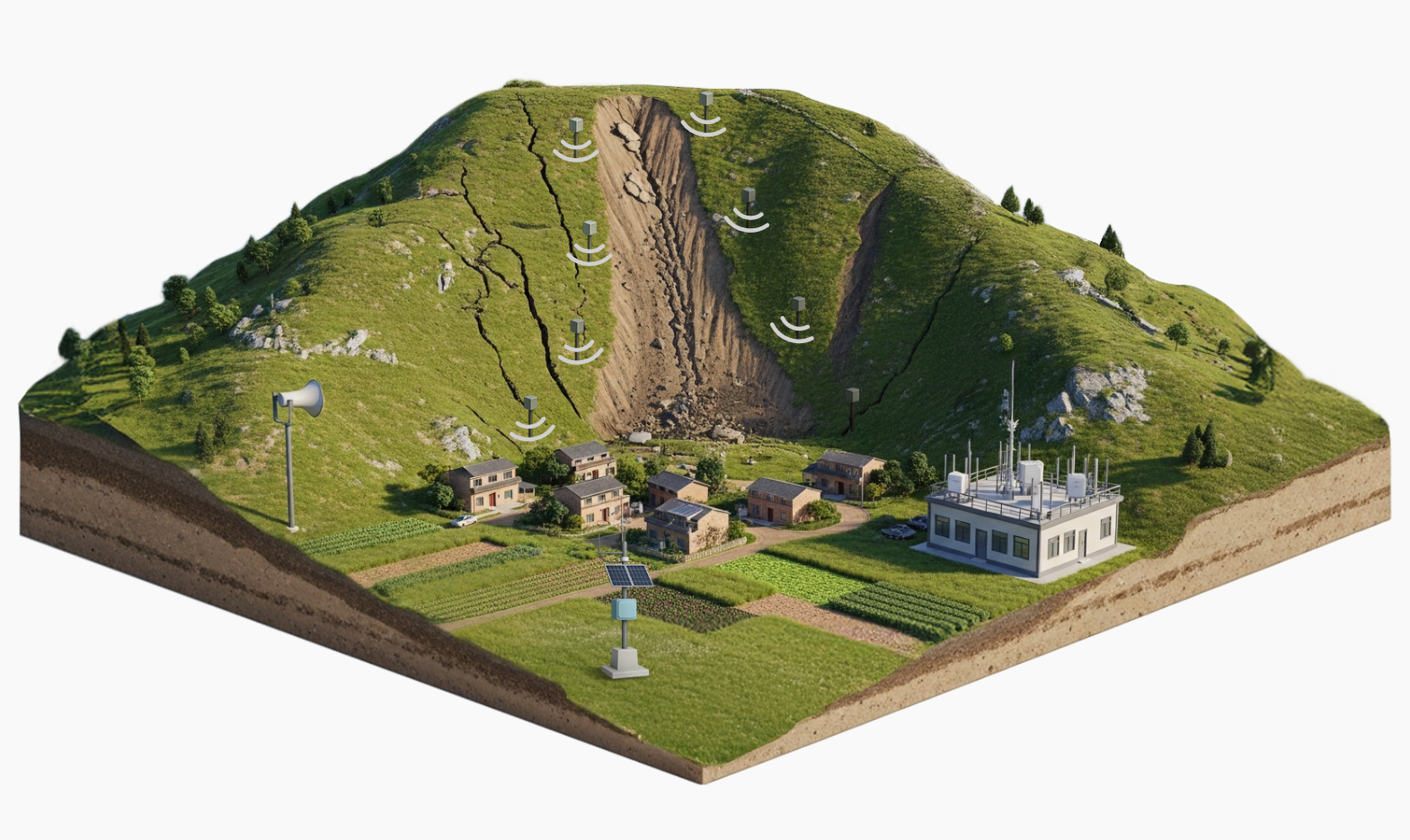

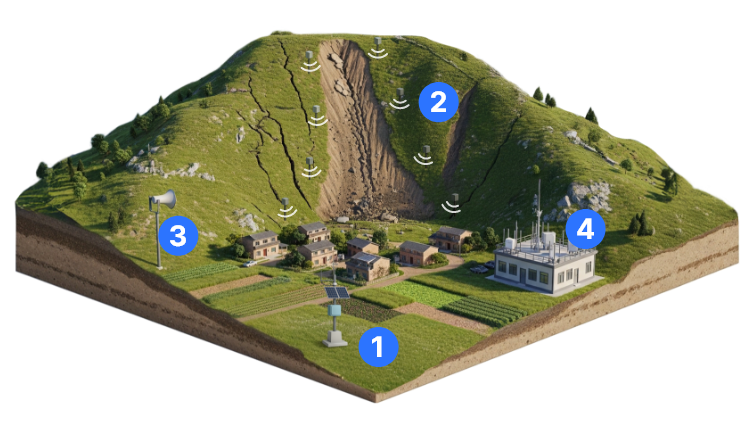

1
LoRa Gateway with Solar Power A communication hub capable of long-range data transmission without power infrastructure
2
Landslide detection sensors A sensor system that detects soil changes and terrain anomalies in real time
3
Alert broadcast system An alert device that immediately notifies residents of danger in emergency situations
4
Operation Center A central management system that integrates and analyzes collected data to coordinate responses

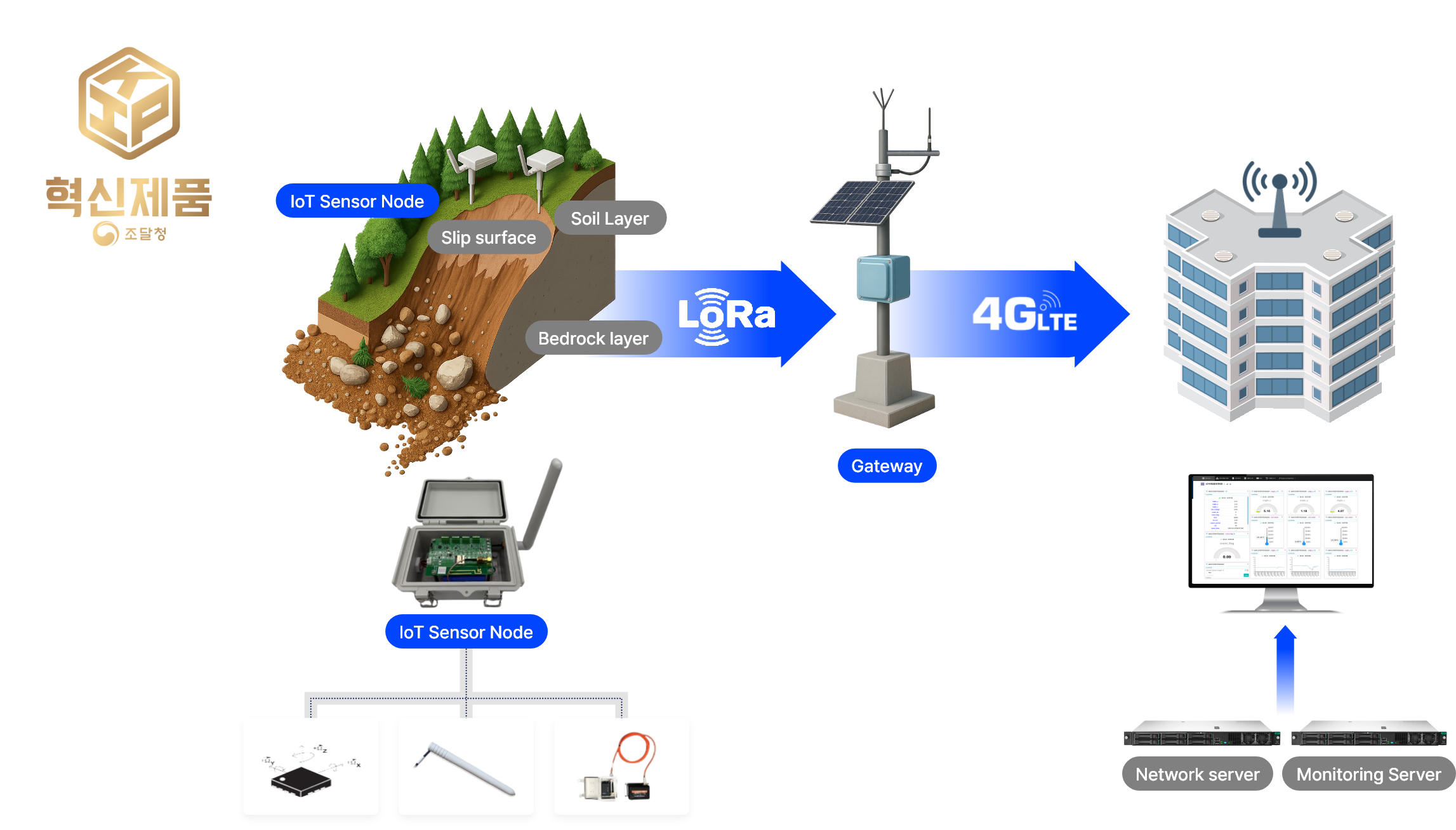

Intelligent Landslide Detection System
  • Sensors placed in high-risk areas such as steep slopes and inclined surfaces monitor ground displacement in real time.
  • Detects soil movement and signs of collapse, delivering instant alerts via solar-powered warning devices and remote gateways.
  • In the event of a disaster, real-time alerts are delivered directly to mobile devices such as smartphones,
    enabling users and stakeholders to immediately recognize the situation and take prompt action.

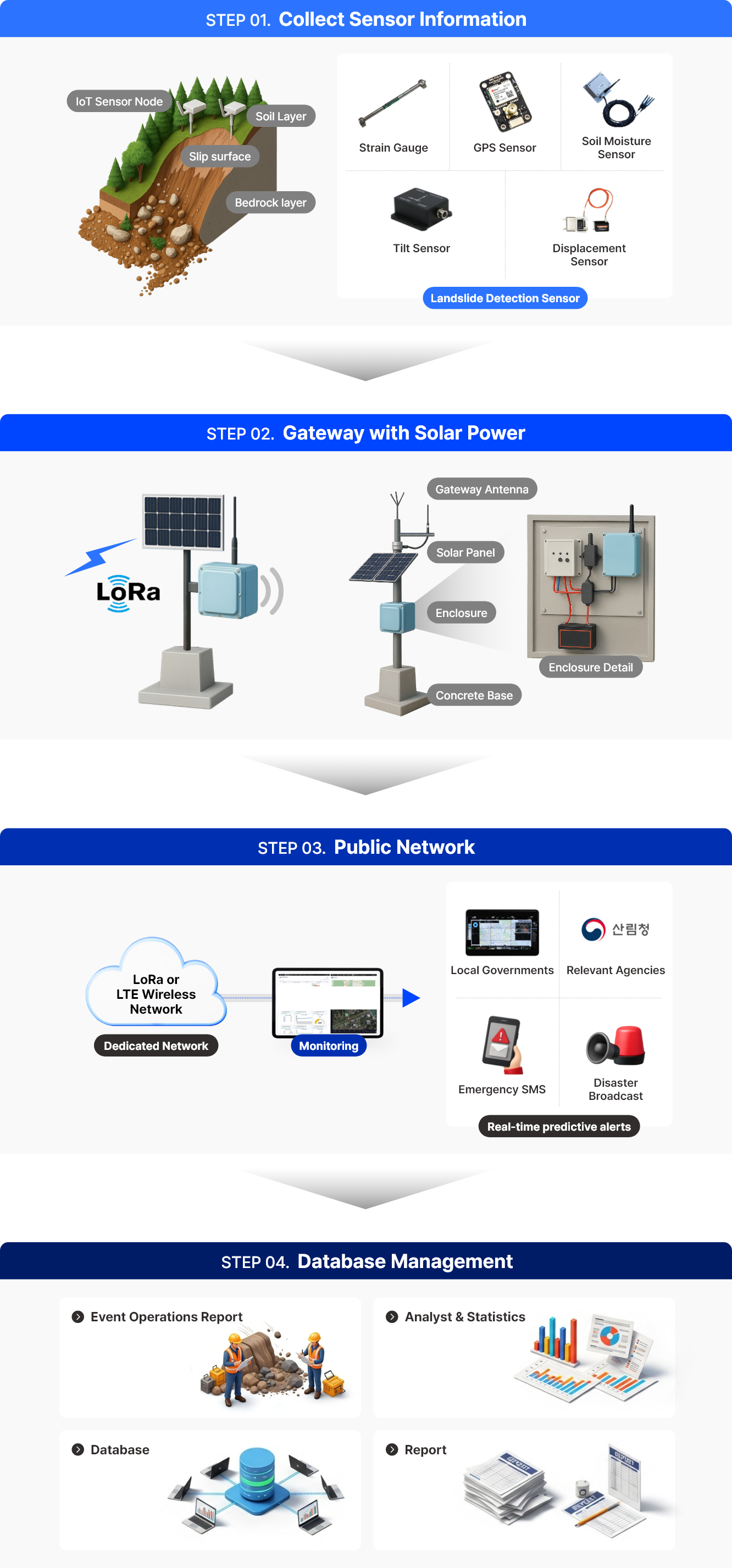

Smart Landslide Detection System
Smart Landslide Detection System Sensor Node
(Installation Site)

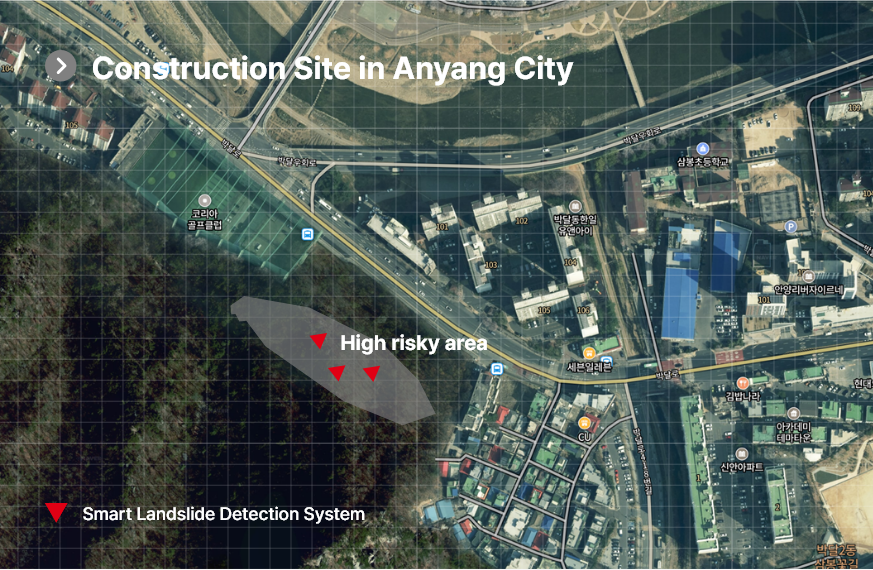

Installation Site in Anyang City
  • Address: Bakdal-dong, Anyang-si
  • Installation Quantity: 3 sites
  • Installation Method: Two detectors installed longitudinally along the section with the maximum slope height,
    and one detector installed laterally
  • Site Selection: Among the steep slopes under management in Anyang-si,
    detectors will be installed at high-risk locations for intensive monitoring and management

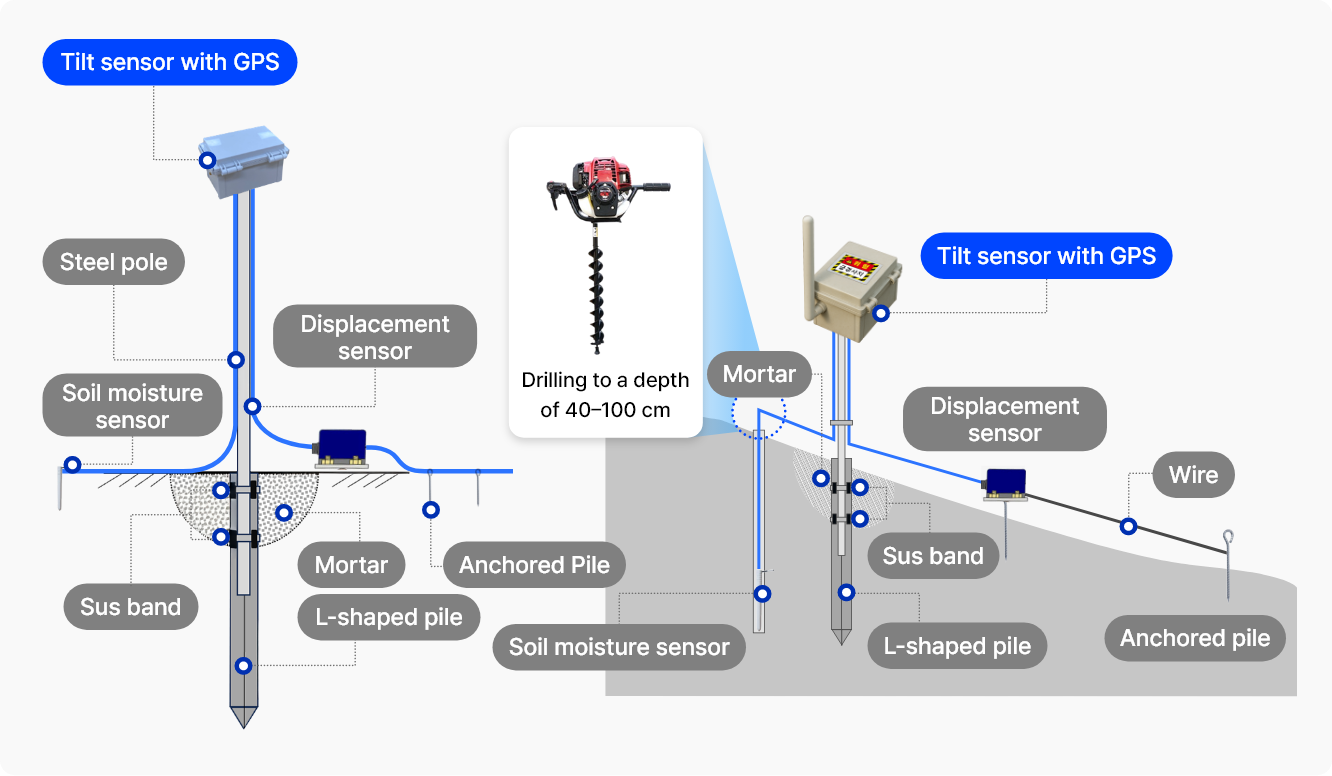

Installation Specification
Integrated Monitoring System
